ABB

2CMA166742R1000

Name: 2CMA166742R1000
Brand: ABB
Availability: PreOrder

Product type: 263P6

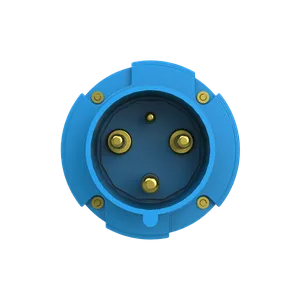

263P6 Industrial Plug

Description

Plug, earthing sleeve position 6h, rated current 63A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Blue

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA166742R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.58 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	103x103x0.215 mm
EAN code	7392696667425
Product group	SI
scip	142e4be7-9288-4b10-935a-76430342c6ba Czech Republic (CZ)
color	Blue
eclass	27440509
unspsc	39121402
function	Plug
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Plug
suitable for	Plugs
frequency (f)	50 Hz60 Hz
cable diameter	17 ... 35 mm
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1565160
e-number (sweden)	E2416221
product main type	TP
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp3.5 N·m
e-number (finland)	2421619
rated current (in)	63 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	4 ... 16 mm2
installation manual	https://library.abb.com/d/2CMC000040M0001
invoice description	Ind. P&S#263P6
cable entry position	Anti-kink sleeve
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
replacement product id (new)	/products/en/2CMA193228R1000
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
