ABB

2CMA166788R1000

Name: 2CMA166788R1000
Brand: ABB
Availability: PreOrder

Product type: 363P7W

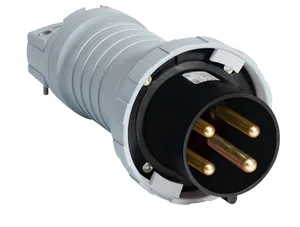

363P7W Industrial Plug

Description

Plug, earthing sleeve position 7h, rated current 63A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code Black

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA166788R1000.
ZWOD Vertriebs und Logistik GmbH carries 221565 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.05 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	114x114x0.275 mm
EAN code	7392696667883
Product group	SI
color	Black
eclass	27440509
unspsc	39121402
function	Plug
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Plug
suitable for	Plugs
frequency (f)	50 Hz60 Hz
cable diameter	17 ... 35 mm
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1563675
e-number (sweden)	E2416289
product main type	TP
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp3.5 N·m
e-number (finland)	2421640
rated current (in)	63 A
rated voltage (ur)	480 ... 500 V
ambient temperature	-25 ... 40 °C
cable cross-section	4 ... 16 mm2
installation manual	https://library.abb.com/d/2CMC000040M0001
invoice description	Ind. P&S#363P7W
mechanical drawings	https://library.abb.com/d/9AKK107492A4181
cable entry position	Cable entry, compression gland, internal and external cable clamp
degree of protection	IP67IP69
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
