ABB

2CMA166794R1000

Product type: 363P1W

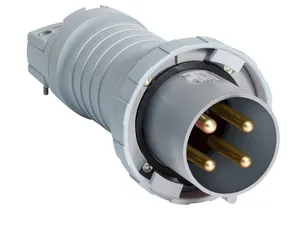

363P1W Industrial Plug

Description

Plug, earthing sleeve position 1h, rated current 63A, IP67 watertight, 3-poles+earth, color code Grey
  • Low Voltage Products and Systems
  • Industrial Plugs and Sockets
  • Tough & Safe
  • Plugs
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA166794R1000.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.05 KG / psc.
Commodity number85366990
Country of originCzech Republic (CZ)
Dimensions (WxHxD)114x114x0.275 mm
EAN code7392696667944
Product groupSI
colorGrey
eclass27440509
unspsc39120000
functionPlug
standardsIEC 60309-1, -2
wire size8 ... 4 AWG
ral numberRAL 7001 - Silver Grey
rohs statusFollowing EU Directive 2011/65/EU
product nameIndustrial Plug
suitable forPlugs
frequency (f)AC Hz
cable diameter17 ... 35 mm
order multiple1 piece
connection typeScrew
number of poles4
protection typeWatertight
housing materialThermoplastic (PBT)
rohs informationhttps://library.abb.com/d/2CMC700005D0001
e-number (norway)2416292
e-number (sweden)E2416292
product main typeTP
reach declarationhttps://library.abb.com/d/2CMC700005D0001
tightening torqueWireClamp3.5 N·m
e-number (finland)2416292
rated current (in)63 A
rated voltage (ur)Optional voltage V
ambient temperature-25 ... 40 °C
cable cross-section4 ... 16 mm2
installation manualhttps://library.abb.com/d/2CMC000040M0001
invoice descriptionInd. P&S#363P1W
mechanical drawingshttps://library.abb.com/d/9AKK107492A4181
cable entry positionCable entry, compression gland, internal and external cable clamp
degree of protectionIP67IP69
additional information3P+E
recommended screw driverPH2
environmental informationhttps://library.abb.com/d/2CMC000056M0000
suitable for product classIEC Industrial Plugs and Sockets
declaration of conformity - cehttps://library.abb.com/d/2CMC700005D0001
