ABB

2CMA166876R1000

Product type: 263C9W

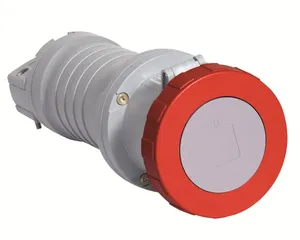

263C9W Industrial Connector

Description

Connector, earthing sleeve position 9h, rated current 63A, IP67 watertight, 2-poles+earth, frequency 50-60 Hz, color code Red
  • Low Voltage Products and Systems
  • Industrial Plugs and Sockets
  • Tough & Safe
  • Connectors
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA166876R1000.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.8 KG / psc.
Commodity number85366990
Country of originCzech Republic (CZ)
Dimensions (WxHxD)108x112x0.286 mm
EAN code7392696668767
Product groupSI
colorRed
eclass27440509
unspsc39120000
functionConnector
standardsIEC 60309-1, -2
wire size8 ... 4 AWG
ral numberRAL 7001 - Silver Grey
rohs statusFollowing EU Directive 2011/65/EU
product nameIndustrial Connector
suitable forConnectors
frequency (f)50 Hz60 Hz
cable diameter17 ... 35 mm
order multiple1 piece
connection typeScrew
number of poles3
protection typeWatertight
housing materialThermoplastic (PBT)
rohs informationhttps://library.abb.com/d/2CMC700005D0001
e-number (norway)2416408
e-number (sweden)2416408
product main typeTC
reach declarationhttps://library.abb.com/d/2CMC700005D0001
semko certificatehttps://library.abb.com/d/1614200
tightening torqueWireClamp3.5 N·m
e-number (finland)2421828
rated current (in)63 A
rated voltage (ur)380 ... 415 V
ambient temperature-25 ... 40 °C
cable cross-section4 ... 16 mm2
installation manualhttps://library.abb.com/d/2CMC000038M0001
invoice descriptionInd. P&S#263C9W
mechanical drawingshttps://library.abb.com/d/9AKK107492A4188
cable entry positionAnti-kink sleeve
degree of protectionIP67IP69
additional information2P+E
recommended screw driverPH2
environmental informationhttps://library.abb.com/d/2CMC000056M0000
suitable for product classIEC Industrial Plugs and Sockets
declaration of conformity - cehttps://library.abb.com/d/2CMC700005D0001
