ABB

2CMA167141R1000

Name: 2CMA167141R1000
Brand: ABB
Availability: PreOrder

Product type: 4125RU4W

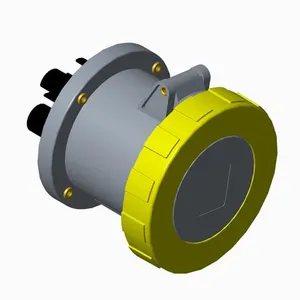

4125RU4W Panel mounted socket

Description

Socket-outlet, panel mounting, earthing sleeve position 4h, rated current 125A, IP67 watertight, unified flange, straight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Yellow

Low Voltage Products and Systems
Industrial Plugs and Sockets
Tough & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA167141R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.14 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	115x158x0.158 mm
EAN code	7392696671415
Product group	SI
color	Yellow
eclass	27440504
unspsc	39120000
function	Socket outlet, panel mounting, unified flange, straight
standards	IEC 60309-1, -2
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
suitable for	Socket Outlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	unified flange, straight
mounting holes	71x71
order multiple	1 piece
connection type	Screw
number of poles	5
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416783
e-number (sweden)	2416783
product main type	TRU
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614199
tightening torque	WireClamp5.6 N·m
e-number (finland)	2416783
rated current (in)	125 A
rated voltage (ur)	57/100 ... 75/130 V
ambient temperature	-25 ... 40 °C
cable cross-section	16 ... 70 mm2
installation manual	https://library.abb.com/d/2CMC000038M0001
invoice description	Ind. P&S#4125RU4W
mechanical drawings	https://library.abb.com/d/9AKK107991A3871
rated frequency (f)	50...60 Hz
degree of protection	IP67IP69
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
