ABB

2CMA167440R1000

Name: 2CMA167440R1000
Brand: ABB
Availability: PreOrder

Product type: 263RAU4W

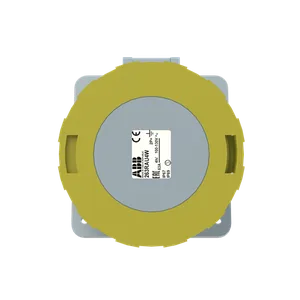

263RAU4W Panel mounted socket

Description

Socket-outlet, panel mounting, earthing sleeve position 4h, rated current 63A, IP67 watertight, unified flange, angled, 2-poles+earth, frequency 50-60 Hz, color code Yellow

Low Voltage Products and Systems
Industrial Plugs and Sockets
Tough & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA167440R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.6 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	106x147x0.147 mm
EAN code	7392696674409
Product group	SI
color	Yellow
eclass	27440504
unspsc	39120000
function	Socket outlet, panel mounting, unified flange, angled
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
suitable for	Socket Outlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	unified flange, angled
cable diameter	17 ... 35 mm
mounting holes	84x80
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416757
e-number (sweden)	2416757
product main type	TRAU
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614204
tightening torque	WireClamp3.5 N·m
e-number (finland)	2420148
rated current (in)	63 A
rated voltage (ur)	100 ... 130 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000038M0001
invoice description	Ind. P&S#263RAU4W
rated frequency (f)	50...60 Hz
degree of protection	IP67IP69
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
