ABB

2CMA167546R1000

Name: 2CMA167546R1000
Brand: ABB
Availability: PreOrder

Product type: 263BS9

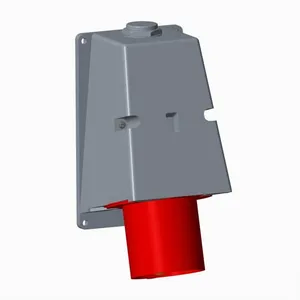

263BS9 Wall mounted inlet

Description

Surface Inlet, earthing sleeve position 9h, rated current 63A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Red

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA167546R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.8 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	107x117x0.237 mm
EAN code	7392696675468
Product group	SI
color	Red
design	Surface mounted plug
eclass	27440519
unspsc	39121406
function	Surface Inlet
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted inlet
suitable for	Surface Inlets
frequency (f)	50 Hz60 Hz
cb certificate	https://library.abb.com/d/2CHC660163X0201
mounting holes	170x95
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417198
e-number (sweden)	2417198
product main type	TBS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1519130
tightening torque	WireClamp3.5 N·m
e-number (finland)	2421843
rated current (in)	63 A
rated voltage (ur)	380 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000040M0001
invoice description	Ind. P&S#263BS9
rated frequency (f)	50 ... 60 Hz
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
