ABB

2CMA167901R1000

Name: 2CMA167901R1000
Brand: ABB
Availability: PreOrder

Product type: 363MHS9W

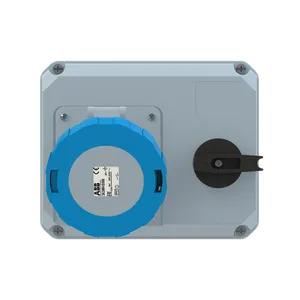

363MHS9W Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet, horisontal, earthing sleeve position 9h, rated current 63A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code Blue

Low Voltage Products and Systems
Industrial Plugs and Sockets
Critical & Safe
Switched Interlocked Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA167901R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	206x168x0.182 mm
EAN code	7392696679015
Product group	SI
color	Blue
eclass	27440510
unspsc	39120000
function	Switched interlocked socket outlet, horisontal
standards	IEC 60309-1, -2, -4
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Switched Interlocked Socket Outlet
sub-function	Cable entry, knock-outs 2xØ32mm
suitable for	Switched Interlocked Socket Outlets, Horisontal
frequency (f)	50 Hz60 Hz
mounting type	Horizontal
cable diameter	17 ... 35 mm
mounting holes	152x132
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Switched Interlocked
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417009
e-number (sweden)	2417009
product main type	CMHS
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp3.5 N·m
e-number (finland)	2417009
rated current (in)	63 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000031M0001
invoice description	Ind. P&S#363MHS9W
cable entry position	Top and bottom
degree of protection	IP67
additional information	3P+E
cable outlets per side	1xØ32
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
