ABB

2CMA168098R1000

Name: 2CMA168098R1000
Brand: ABB
Availability: PreOrder

Product type: 432MPR6W

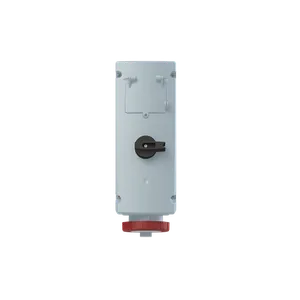

432MPR6W Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet with RCD, earthing sleeve position 6h, 30mA, rated current 32A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Critical & Safe
Switched Interlocked Socket Outlets with RCD

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA168098R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.8 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	130x183x0.366 mm
EAN code	7392696680981
Product group	SI
color	Red
eclass	27440510
unspsc	39120000
function	Switched interlocked socket outlet with RCD, 30 mA
standards	IEC 60309-1, -2, -4
wire size	12 ... 10 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Switched Interlocked Socket Outlet
sub-function	Cable entry, knock-outs 2xØ25mm
suitable for	Switched Interlocked Socket Outlets with RCD
frequency (f)	50 Hz60 Hz
mounting type	Vertical
cable diameter	13 ... 21.5 mm
mounting holes	290x100
number of rcds	1
order multiple	1 piece
connection type	Screw Clamp
number of poles	5
protection type	RCD
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2466226
e-number (sweden)	2466226
product main type	CMPR
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1507476
tightening torque	WireClamp1.2 N·m
e-number (finland)	2466226
rated current (in)	32 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 10 mm2
installation manual	https://library.abb.com/d/2CMC000041M0002
invoice description	Ind. P&S#432MPR6W
number of rcds 30ma	1
cable entry position	Top
degree of protection	IP67
additional information	3P+N+E
cable outlets per side	2xØ25
rated residual current	30 mA
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
