ABB

2CMA168118R1000

Name: 2CMA168118R1000
Brand: ABB
Availability: PreOrder

Product type: 463BU11W

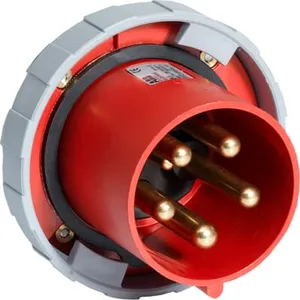

463BU11W Panel mounted inlet

Description

Inlet, panel mounting, earthing sleeve position 11h, rated current 63A, IP67 watertight, unified flange, straight, 3-poles+neutral+earth, frequency 60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Tough & Safe
Inlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA168118R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.6 KG / psc.
Commodity number	85366990
Country of origin	Czech Republic (CZ)
Dimensions (WxHxD)	114x114x0.126 mm
EAN code	7392696681186
Product group	SI
color	Red
design	Surface mounted plug
eclass	27440519
unspsc	39120000
function	Inlet, panel mounting, unified flange, straight
standards	IEC 60309-1, -2
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted inlet
suitable for	Inlets for Panel Mounting
frequency (f)	60 Hz
mounting type	unified flange, straight
cb certificate	https://library.abb.com/d/2CHC660163X0201
mounting holes	61x61
order multiple	1 piece
connection type	Screw
number of poles	5
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417419
e-number (sweden)	2417419
product main type	TBU
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1519130
e-number (finland)	2417419
rated current (in)	63 A
rated voltage (ur)	250/440 ... 265/460 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000040M0001
invoice description	Ind. P&S#463BU11W
rated frequency (f)	60 ... 60 Hz
degree of protection	IP67IP69
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
