ABB

2CMA170044R1000

Name: 2CMA170044R1000
Brand: ABB
Availability: PreOrder

Product type: 432RAM6

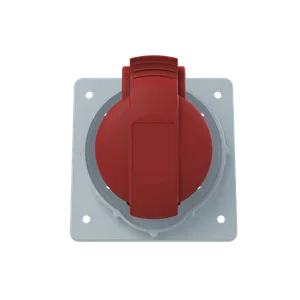

432RAM6 Panel mounted socket

Description

Panel mounted socket, earthing sleeve position 6h, rated current 32A, IP44 splashproof, minimized flange, angled, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA170044R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	94x99x0.116 mm
EAN code	7392696700443
Product group	SI
color	Red
eclass	27440504
unspsc	39121406
function	Panel mounted socket
standards	IEC 60309-1, -2
wire size	12 ... 10 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
suitable for	Socket Outlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	Minimized angled flange
cable diameter	13 ... 21.5 mm
cb certificate	https://library.abb.com/d/2CHC660154X0201
mounting holes	75x75
order multiple	10 piece
connection type	Screw
number of poles	5
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416487
e-number (sweden)	E2416487
product main type	ERAM
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614201
tightening torque	WireClamp1.2 N·m
e-number (finland)	2421414
rated current (in)	32 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 10 mm2
invoice description	Ind. P&S#432RAM6
mechanical drawings	https://library.abb.com/d/9AKK107991A3703
rated frequency (f)	50...60 Hz
degree of protection	IP44
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
