ABB

2CMA193121R1000

Name: 2CMA193121R1000
Brand: ABB
Availability: PreOrder

Product type: 232RS4

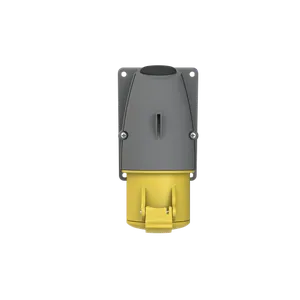

232RS4 Wall mounted socket

Description

Wall mounted socket, earthing sleeve position 4h, rated current 32A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Yellow

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Surface Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA193121R1000.
ZWOD Vertriebs und Logistik GmbH carries 226480 items from ABB.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	85x118x0.163 mm
EAN code	7392696931212
Product group	SI
color	Yellow
eclass	27440510
unspsc	39121406
function	Wall mounted socket
standards	IEC 60309-1, -2
wire size	12 ... 10 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted socket
suitable for	Surface Socket Outlets
frequency (f)	50 Hz60 Hz
mounting type	Angled
cable diameter	22 mm
mounting holes	111x72
order multiple	10 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416490
e-number (sweden)	E2416490
product main type	ERS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
tightening torque	WireClamp1.2 N·m
e-number (finland)	2416490
rated current (in)	32 A
rated voltage (ur)	100 ... 130 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 10 mm2
installation manual	https://library.abb.com/d/2CMC700014C0016
invoice description	Ind. P&S#232RS4
mechanical drawings	https://library.abb.com/d/9AKK107680A0704
cable entry position	Cable entry, flexible membrane and metric threaded M25 insert for top cable entry.Rear knock-out cable entry.
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
