ABB

2CMA193251R1000

Name: 2CMA193251R1000
Brand: ABB
Availability: PreOrder

Product type: 332RU7

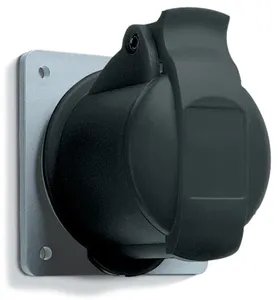

332RU7 Panel mounted socket

Description

Panel mounted socket, earthing sleeve position 7h, rated current 32A, IP44 splashproof, unified flange, straight, 3-poles+earth, frequency 50-60 Hz, color code Black

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA193251R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.26 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	75x100x0.103 mm
EAN code	7392696932516
Product group	SI
color	Black
eclass	27440504
unspsc	39121406
function	Panel mounted socket
standards	IEC 60309-1, -2
wire size	12 ... 10 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
suitable for	Socket Outlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	Unified straight flange
cable diameter	13 ... 21.5 mm
mounting holes	60-61x60-61
order multiple	10 piece
connection type	Screw
number of poles	4
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1547345
e-number (sweden)	E2416658
product main type	ERU
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
tightening torque	WireClamp1.2 N·m
e-number (finland)	2421244
rated current (in)	32 A
rated voltage (ur)	480 ... 500 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 10 mm2
invoice description	Ind. P&S#332RU7
rated frequency (f)	50...60 Hz
degree of protection	IP44
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
