2CSB202701R4630
ABB

2CSB202701R4630

Product type: DDA202 A-63/0.5 AE

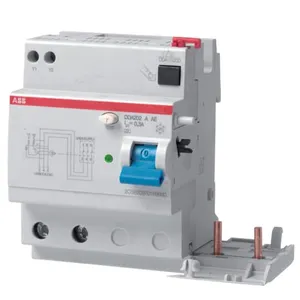

DDA202 A-63/0.5 AE Residual Current Device Block

Datasheet

Description

The RCD block DDA200 series is suitable for assembly with MCBs S200 series. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. It is provided with two additional contacts to be used in emergency circuits for remote opening in positive safety. Applications: commercial, industrial.
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Residual Current Devices RCDs
  • Residual Current Devices RCD Blocks
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSB202701R4630.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.21 KG / psc.
Commodity number85363030
Country of originItaly (IT)
Dimensions (WxHxD)70x93x76 mm
EAN code8012542801900
Product groupAM
cn885363030
eclassV11.0 : 27142210
etim 7EC002297 - Residual current circuit breaker (RCCB) module
etim 8EC002297 - Residual current circuit breaker (RCCB) module
standardsIEC/EN 61009 Ann. G
power loss5 W
applicationFor emergency stop
rohs statusFollowing EU Directive 2011/65/EU
weee category5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2bBusiness To Consumer
number of poles2
options providedFor emergency stop
rohs informationhttps://library.abb.com/d/9AKK106713A5614
rated current (in)63 A
rated voltage (ur)230/400 V
ambient temperature-25...55 °C
connecting capacityRigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated frequency (f)50/60 Hz
degree of protectionIP2X
electrical endurance10000 cycle
leakage current typeA
rated residual current500 mA
ambient air temperatureOperation -25...55 °C
power supply connectionArbitrary
operating characteristicInstantaneous (AE for Emergency Stop)
type of residual currentA type
environmental informationhttps://library.abb.com/d/2CSC427001K2701
rated operational voltage230 V
object classification codeF
rated insulation voltage (ui)500 V
declaration of conformity - cehttps://library.abb.com/d/9AKK106713A5614
data sheet, technical informationhttps://library.abb.com/d/9AKK107991A8329
short-circuit current rating (sccr)0.5 ... 0.5 A
rated impulse withstand voltage (uimp)4 kV
resistance to shock acc. to iec 60068-2-2725g 2 shocks 13 ms
resistance to vibrations acc. to iec 60068-2-60.1 mm or 1 g - 20 cycles at 5...150...5 Hz
