ABB

2CSB204101R1400

Name: 2CSB204101R1400
Brand: ABB
Availability: PreOrder

Product type: DDA204 A-40/0.03

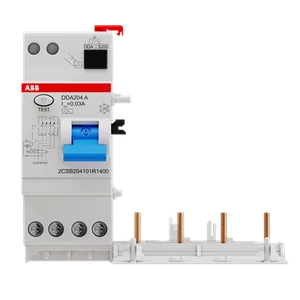

DDA204 A-40/0.03 Residual Current Device Block

Datasheet

Description

The RCD block DDA200 series is suitable for assembly with MCBs S200 series. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Devices RCD Blocks

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSB204101R1400.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.173 KG / psc.
Commodity number	85363030
Country of origin	Italy (IT)
Dimensions (WxHxD)	105x93x76 mm
EAN code	8012542798101
Product group	AM
cn8	85363030
eclass	V11.0 : 27142210
etim 7	EC002297 - Residual current circuit breaker (RCCB) module
etim 8	EC002297 - Residual current circuit breaker (RCCB) module
standards	IEC/EN 61009 Ann. G
power loss	4.8 W
rohs status	Following EU Directive 2011/65/EU
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	4
options provided	-
rohs information	https://library.abb.com/d/9AKK106713A5614
e-number (finland)	3259840
rated current (in)	40 A
rated voltage (ur)	230/400 V
ambient temperature	-25...55 °C
connecting capacity	Rigid 16 ... 16 mm2Flexible 16 ... 16 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP2X
electrical endurance	10000 cycle
leakage current type	A
rated residual current	30 mA
ambient air temperature	Operation -25...55 °C
power supply connection	Arbitrary
operating characteristic	Instantaneous
type of residual current	A type
environmental information	https://library.abb.com/d/Refer to RoHS
rated operational voltage	230/400 V
object classification code	F
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5614
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
short-circuit current rating (sccr)	0.03 ... 0.03 A
rated impulse withstand voltage (uimp)	4 kV
resistance to shock acc. to iec 60068-2-27	25g / 2 shocks / 13 ms
resistance to vibrations acc. to iec 60068-2-6	0.1 mm or 1 g - 20 cycles at 5...150...5 Hz
