ABB

2CSB802101R3000

Name: 2CSB802101R3000
Brand: ABB
Availability: PreOrder

Product type: DDA802 A-100/0.3

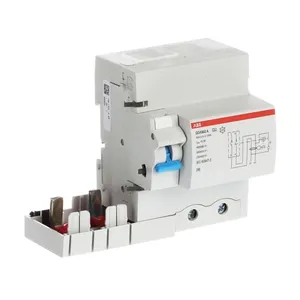

DDA802 A-100/0.3 Residual Current Device Block

Datasheet

Description

The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series up to 100A.

Low Voltage Products and Systems
Modular DIN Rail Products
High Performance Circuit Breakers HPCBs Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSB802101R3000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85363030
Country of origin	Italy (IT)
Dimensions (WxHxD)	81x108.2x82.3 mm
EAN code	8012542545033
Product group	AM
cn8	85363030
eclass	V11.0 : 27142210
etim 7	EC002297 - Residual current circuit breaker (RCCB) module
etim 8	EC002297 - Residual current circuit breaker (RCCB) module
standards	IEC EN 60947-2 Ann. B
power loss	7 W
rohs status	Following EU Directive 2011/65/EU
suitable for	S800S, S800N, S800C, S800B
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	2
options provided	-
rohs information	https://library.abb.com/d/9AKK106713A5616
rated current (in)	100 A
rated voltage (ur)	230 V AC240 V AC400 V AC
ambient temperature	-25...60 °C
connecting capacity	Rigid 6 ... 50 mm2Flexible 6 ... 70 mm2
rated frequency (f)	50 ... 60 Hz
degree of protection	IP2X
leakage current type	A
maximum surge current	0.25 kA
rated residual current	300 mA
ambient air temperature	Operation -25...60 °C
operating characteristic	Instantaneous
type of residual current	A type
environmental information	https://library.abb.com/d/refer to RoHS information
rated operational voltage	400/690 V
object classification code	F
rated insulation voltage (ui)	690 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5616
data sheet, technical information	https://library.abb.com/d/2CSC400002D0209
short-circuit current rating (sccr)	0.3 ... 0.3 A
width in number of modular spacings	4.5
rated impulse withstand voltage (uimp)	6 kV
