2CSF200992R0005
ABB

2CSF200992R0005

Product type: F2C-ARH

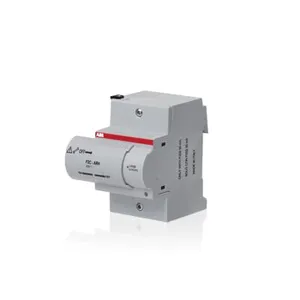

F2C-ARH Auto-reclosing unit

Datasheet

Description

The F2C-ARH device allows the auto-reclosing of the RCD it is associated to in case of unwanted tripping, only after having checked that there are no effective faults in the system protected by the RCCB. It is suitable for RCDs of F200 series, 2 poles with 30 mA sensitivity.
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Residual Current Devices RCDs
  • Autoreclosing Devices for RCDs
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSF200992R0005.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.211 KG / psc.
Commodity number85389099
Country of originItaly (IT)
Dimensions (WxHxD)53x85x80 mm
EAN code8012542732433
Product groupAM
cn885389099
eclassV11.0 : 27143502
etim 7EC001286 - Auxiliary device for distribution board devices
etim 8EC001286 - Auxiliary device for distribution board devices
power lossat Rated Operating Conditions per Pole 0.4 W
rohs statusFollowing EU Directive 2011/65/EU
suitable forF202 30mA up to 63A
weee category5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2bBusiness To Consumer
rohs informationhttps://library.abb.com/d/Refer to Declaration of Conformity CE
number of switches0
rated voltage (ur)12 V
number of contacts co1
number of contacts nc0
number of contacts no1
environmental informationhttps://library.abb.com/d/Refer to Declaration of Conformity CE
object classification codeQ
suitable for product classResidual Current Devices RCDs
declaration of conformity - cehttps://library.abb.com/d/9AKK106713A5575
data sheet, technical informationhttps://library.abb.com/d/9AKK107046A0426
