ABB

2CSM222521R1000

Name: 2CSM222521R1000
Brand: ABB
Availability: PreOrder

Product type: DW2

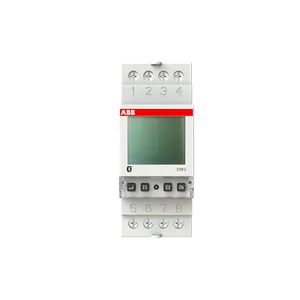

DW2 Digital Time switch

Datasheet

Description

Digital time switch, weekly programming, two channels

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Analogue and Digital Time Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSM222521R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.152 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	35x65x87 mm
EAN code	8012542225218
Product group	AR
cn8	85364900
eclass	V11.0 : 27200110
etim 7	EC002305 - Digital time switch for distribution board
etim 8	EC002305 - Digital time switch for distribution board
accuracy	± 0.5sec/24h
function	Weekly
standards	EN 60730-2-7EN-301 489-17EN-300 328EN-62479EN 50581
meter type	Digital
power loss	2 W
battery life	5 year
battery type	Button Cell
contact type	Change-Over (CO)
power supply	230 V AC
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0.003 kg
supply voltage	230 V AC
weee b2c / b2b	Business To Consumer
options provided	With running reserve
rohs information	https://library.abb.com/d/2CSC441018D2701
e-number (sweden)	1330651
tightening torque	0.5 N·m
e-number (finland)	2619407
number of channels	2
connecting capacity	Solid 2.5 mm2
number of batteries	1
operational voltage	195.5 ... 253 V AC
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
minimum switching time	1 minute [unit of time]
ambient air temperature	Operation -20 ... +50 °CStorage -25 ... +70 °C
maximum switching power	4000 V·A
rated switching capacity	2000 WFluorescentLamps 600 V·A2000 W600 V·A500 W
maximum switching current	16 A
maximum number of programs	120
object classification code	K
power consumption (@pcons)	2 W
battery chemical composition	Lithium
declaration of conformity - ce	https://library.abb.com/d/2CSC441018D2701
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
width in number of modular spacings	2
rated impulse withstand voltage (uimp)	Maximum 4 kV
