ABB

2CSM228675R0812

Name: 2CSM228675R0812
Brand: ABB
Availability: PreOrder

Product type: TS8/24

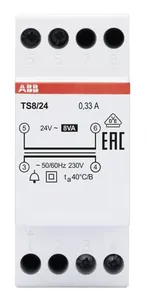

TS8/24 Non-inherently short-circuit proof bell transformer

Description

These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSM228675R0812.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85043121
Country of origin	Romania (RO)
Dimensions (WxHxD)	35x85x65 mm
EAN code	8012542286752
Product group	AR
cn8	85043121
eclass	V11.0 : 27031190
etim 7	EC001547 - Bell transformer
etim 8	EC001547 - Bell transformer
remarks	Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
standards	IEC/ EN 61558-2-8
power loss	2.5 W
application	Residential
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
power supply	8 V·A
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107992A6660
primary voltage	230 V
vde certificate	https://library.abb.com/d/9AKK107992A6774
insulation class	B
options provided	None
rohs information	https://library.abb.com/d/2CSC446004K0201
transformer type	Non - Inherently Short Circuit Proof
e-number (sweden)	5270510
secondary current	0.33 A
secondary voltage	24 V AC
tightening torque	0.5 N·m
e-number (finland)	8409002
product net length	65 mm
rated output power	8 W
connecting capacity	2.5 mm2
rated frequency (f)	50/60 Hz
certification agency	IMQ
degree of protection	IP20
connecting capacity ul/csa	14 AWG
object classification code	T
output current maximum (iout)	0.33 A
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/2CSC000001D0202
width in number of modular spacings	2
