2CSM228775R0802
ABB

2CSM228775R0802

Product type: TM40/12

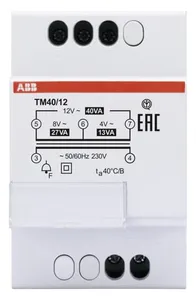

TM40/12 Fail safe bell transformer

Datasheet

Description

These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply.
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Bells and safety transformers
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSM228775R0802.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.45 KG / psc.
Commodity number85043121
Country of originRO
Dimensions (WxHxD)52.5x85x65 mm
EAN code8012542287759
Product groupAR
cn885043121
eclassV11.0 : 27031190
etim 7EC001547 - Bell transformer
etim 8EC001547 - Bell transformer
remarksSuitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
standardsIEC/EN 61558-2-8
power loss3 W
applicationResidential
rohs statusFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
power supply40 V·A
weee category5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2bBusiness To Consumer
eac certificatehttps://library.abb.com/d/9AKK107992A6660
imq certificatehttps://library.abb.com/d/9AKK107992A6759
primary voltage230 V
insulation classB
options providedNone
rohs informationhttps://library.abb.com/d/2CSC446004K0201
transformer typeFail - Safe Bell Transformers
secondary current3.33 A
secondary voltage(6-7) 4 V AC(5-6) 8 V AC(5-7) 12 V AC
tightening torque0.5 N·m
product net length65 mm
rated output power40 W
connecting capacity2.5 mm2
rated frequency (f)50/60 Hz
certification agencyIMQ
degree of protectionIP20
connecting capacity ul/csa14 AWG
object classification codeT
output current maximum (iout)10 A
declaration of conformity - cehttps://library.abb.com/d/9AKK106713A5640
data sheet, technical informationhttps://library.abb.com/d/2CSC000001D0202
width in number of modular spacings3
