ABB

2CSR252140R1105

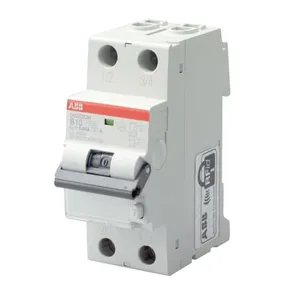

Name: 2CSR252140R1105
Brand: ABB
Availability: PreOrder

Product type: DS202C B10 A30

DS202C B10 A30 Residual Current Circuit Breaker with Overcurrent Protection

Datasheet

Description

The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Circuit Breakers with Overcurrent Protection RCBO

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSR252140R1105.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.225 KG / psc.
Commodity number	85363010
Country of origin	Italy (IT)
Dimensions (WxHxD)	0.035x0.085x0.069 m
EAN code	8012542132356
Product group	AM
cn8	85363010
eclass	V11.0 : 27142207
etim 7	EC000905 - Earth leakage circuit breaker
etim 8	EC000905 - Earth leakage circuit breaker
standards	IEC 61009-1IEC 61009-2-1EN 61009-1EN 61009-2-1
power loss	2.3 W
rohs status	Following EU Directive 2011/65/EU
release type	B
frequency (f)	50/60 Hz
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	2
options provided	None
pollution degree	2
rohs information	https://library.abb.com/d/2CSC422002K2701
e-number (finland)	3259969
input voltage type	AC
rated current (in)	10 A
rated voltage (ur)	230-240 V AC
ambient temperature	-25...55 °C
built-in depth (t2)	69 mm
connecting capacity	Busbar 10 mm2Rigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated cross-section	4 - Multi-Wired 1...25 mm21 - Solid-Core 25...25 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP2X
earthing switch type	Undelayed
electrical endurance	10000 cycle
leakage current type	A
mechanical endurance	20000 cycle
overvoltage category	III
accessories available	Yes
energy limiting class	3
rated residual current	30 mA
ambient air temperature	Operation -25...55 °C
power supply connection	Arbitrary
tripping characteristic	B
operating characteristic	Instantaneous
type of residual current	A type
environmental information	https://library.abb.com/d/9AKK107680A8583
number of protected poles	2
rated operational voltage	230 / 240 V AC
object classification code	F
rated short-circuit capacity	6 kA
replacement product id (new)	2CSR752140R1105
position of neutral terminals	RightLeft
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5589
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
short-circuit current rating (sccr)	0.03 A
width in number of modular spacings	2
rated impulse withstand voltage (uimp)	4 kV
rated conditional short-circuit current (inc)	10 kA
rated ultimate short-circuit breaking capacity (icu)	10 kA
rated service short-circuit breaking capacity, in % of icu (ics)	6 kA
