ABB

2CSR256440R1254

Name: 2CSR256440R1254
Brand: ABB
Availability: PreOrder

Product type: DS203NC C25 APR30

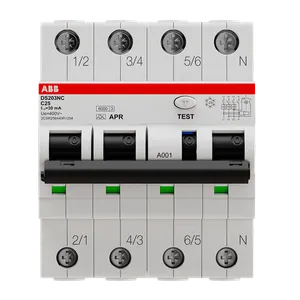

DS203NC C25 APR30 Residual Current Circuit Breaker with Overcurrent Protection

Datasheet

Description

DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions).

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Circuit Breakers with Overcurrent Protection RCBO

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CSR256440R1254.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.48 KG / psc.
Commodity number	85363030
Country of origin	IT
Dimensions (WxHxD)	0.071x0.085x0.069 m
EAN code	8012542261223
Product group	AM
cn8	85363030
eclass	V11.0 : 27142207
etim 7	EC000905 - Earth leakage circuit breaker
etim 8	EC000905 - Earth leakage circuit breaker
standards	IEC 61009-1IEC 61009-2-1EN 61009-1EN 61009-2-1
power loss	10.3 W
rohs status	Following EU Directive 2011/65/EU
release type	C
frequency (f)	50/60 Hz
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
ccc certificate	https://library.abb.com/d/2021980307001650
number of poles	4
options provided	None
pollution degree	2
rohs information	https://library.abb.com/d/9AKK106713A8875
input voltage type	AC
rated current (in)	25 A
rated voltage (ur)	400-415 V AC
ambient temperature	-25...55 °C
built-in depth (t2)	69 mm
connecting capacity	Busbar 10 mm2Rigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated cross-section	4 - Multi-Wired 1...25 mm21 - Solid-Core 25...25 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP2X
earthing switch type	Short-Time Delayed
electrical endurance	10000 cycle
leakage current type	A
overvoltage category	III
accessories available	Yes
energy limiting class	3
maximum surge current	3 kA
rated residual current	30 mA
ambient air temperature	Operation -25...55 °C
power supply connection	Arbitrary
tripping characteristic	C
operating characteristic	Instantaneous (APR High Immunity)
type of residual current	A type
environmental information	https://library.abb.com/d/refer to RoHS information
number of protected poles	3
rated operational voltage	400 ... 415 V AC
object classification code	F
mechanical endurance (nendu)	20000 cycle
position of neutral terminals	Right
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5597
data sheet, technical information	https://library.abb.com/d/2CSC423030B0201
rated short-circuit capacity (icn)	(230 / 400 V AC) 6 kA
short-circuit current rating (sccr)	0.03 A
width in number of modular spacings	4
rated impulse withstand voltage (uimp)	4 kV
rated conditional short-circuit current (inc)	10 kA
rated ultimate short-circuit breaking capacity (icu)	10 kA
rated service short-circuit breaking capacity, in % of icu (ics)	6 kA
