Product type: E297-16-10/8

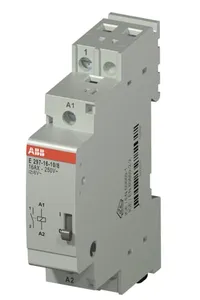

E297-16-10/8 Installation relay

Description

Installation relays are electromagnetically operated miniature contactors in the standard DIN width of 18 mm. A reliable control system can be designed using these ABB Installation relays E297. They are used mainly in industrial plants but also in commercial and public buildings. As a rule, installation relays operated by means of a control switch (maintained contact) are installed where it is necessary to operate lighting, an air-conditioning system, a fan or suchlike. Installation relays are also referred to as monostable switching relays or 2-pole miniature contactors. The term "monostable" means that an on command has to be sent to the coil by means of a control switch (maintained operation) in order to excite the magnetic coil. The coil armature attracts and closes or opens the main contacts. The device remains in the on position for as long as the control voltage is applied to the coil. If the voltage flow to the coil is interrupted, the installation relay always returns to the neutral position (off position). Installation relays and the accessories are available in different versions in order to easily satisfy the various market requirements. Their optimal switching capacity also makes them suitable for use in industrial environments and in situations where it is necessary to ensure control over more powerful consumers (such as e.g. multiple lighting ystems). Using an optimized coil (low power loss = lower operating temperature) ensures a clean and safe operation in the electrical distribution board.
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Installation Relays
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2TAZ311000R2061.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight113 G / psc.
Commodity number85364930
Country of originChina (CN)
Dimensions (WxHxD)18x85x62 mm
EAN code7612270940004
Product groupAR
cn885362020
colorGrey
eclassV11.0 : 27142309
etim 7EC001652 - Installation relay
etim 8EC001652 - Installation relay
standardsEN 60669-1EN 60669-2-2
power loss0.5 W
ral numberRAL 7035 - Light Grey
rohs statusFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
contact typeNormally Open (NO)
sound db (a)(@distance 1 m) 60 dB
mounting typeDin-Rail
response time<3 ms
weee category5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage7.2 ... 8.8 V AC
weee b2c / b2bBusiness To Consumer
eac certificatehttps://library.abb.com/d/9AKK107992A1778
vde certificatehttps://library.abb.com/d/VDE_E297_40041228
coil consumptionControl Voltage V AC 8 V ACAverage Pull-in Value 50 Hz 7.00 AAverage Holding Value 50 Hz 0.924 WAverage Holding Value 50 Hz 0.183 A
options provided1NO
rohs informationhttps://library.abb.com/d/2CCC413008D0206
dimension diagramhttps://library.abb.com/d/9AKK107992A6188
maximum lamp load3000 WFlourescent, Uncorrected Power Factor (cos. 0.5) 1800 WFlourescent, Corrected Power Factor (cos. 0.9): Serial 3000 WFlourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 WFlourescent, Corrected Power Factor (cos. 0.9): Single 1800 WFlourescent, Corrected Power Factor (cos. 0.9): Double 2500 W
tightening torque1.2 - 1.5 N&#183;m
product net length62 mm
rated current (in)16 A
rated voltage (ur)250 V AC
built-in depth (t2)62 mm
connecting capacitySolid 1 x 1 ... 10 mm2Flexible 2 x 2.5 mm2Flexible with Cable End 1 x 0.75 ... 6 mm2Flexible with Cable Lug 1 x 0.75 ... 6 mm2
rated frequency (f)50 .. 60 Hz
number of contacts co0
number of contacts nc0
number of contacts no0
ambient air temperatureOperation -25...+55 &#176;CStorage -40...+70 &#176;C
environmental informationhttps://library.abb.com/d/2CCC441012D0202
rated operational voltage250 V AC
number of main contacts nc0
number of main contacts no0
object classification codeK
rated insulation voltage (ui)8 V AC
declaration of conformity - cehttps://library.abb.com/d/2CCC005103D0201
number of auxiliary contacts nc0
number of auxiliary contacts no2
data sheet, technical informationhttps://library.abb.com/d/2CCC441020C0201
rated control supply voltage (us)8 V AC
rated control circuit voltage (uc)8 V AC
short-circuit current rating (sccr)3 kA
width in number of modular spacings1
rated impulse withstand voltage (uimp)4 kV
