2TLA020006R2201

Name: 2TLA020006R2201
Brand: ABB
Availability: PreOrder

Product type: JSHD4-2 Black

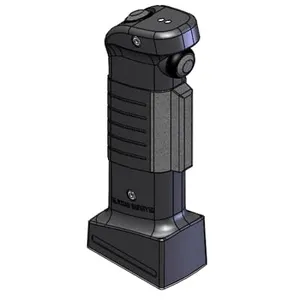

JSHD4-2 Black Three-position handheld device - Top part

Datasheet

Description

The JSHD4-2 Black is a black top part of a three-position device JSHD4. It has LEDs, a front button and a top button. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK.Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.

Low Voltage Products and Systems
Control Products
Safety Products
Safety Control Devices
JSHD

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2TLA020006R2201.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.132 KG / psc.
Commodity number	85369095
Country of origin	SE
Dimensions (WxHxD)	34x235x60 mm
EAN code	7350024481228
Product group	G4
eclass	V11.0 : 27371238
etim 6	EC002571 - Agreement switch
etim 7	EC002571 - Agreement switch
etim 8	EC002571 - Agreement switch
material	Handle: Polyamide and NorylRubber: Neoprene
b10d value	2 million operations to middle position968 000 operations to bottom position
product name	Three-position handheld device - Top part
sub-function	1 front and 1 top auxiliary buttons
sub-function 2	Holder for Eva (home position) with bottom part ALAnti-tamper available as option (not with AK bottom)
wiring diagram	https://library.abb.com/d/2TLC010143D0201
csa certificate	https://library.abb.com/d/2TLC172086D0201
status indicator	Yes
semko certificate	https://library.abb.com/d/2TLC172032D0201
degree of protection	IP65
enclosure type ul/csa	1
number of contacts co	2
number of contacts nc	0
number of contacts no	0
technical information	Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button
performance level (pl)	Up to e
ambient air temperature	Operation -10 ... +70 °C
communication interface	Contacts
connection configuration	Depends on bottom part
maximum switching current	Main Circuit 0.02 mA
maximum switching voltage	Main Circuit 30 V
rated operational voltage	24 V DC
minimum switching capacity	Main Circuit 8 mA, 10 VDC
declaration of conformity - ce	https://library.abb.com/d/2TLC172022D0201
declaration of conformity - ukca	https://library.abb.com/d/2TLC010152D0201
data sheet, technical information	https://library.abb.com/d/2TLC010001C0202
rated operational current dc-12 (ie)	(24 V) 0.02 A
