ABB

2TLA920063R0000

Product type: JSD-HD4-320136

JSD-HD4-320136 Safety Control Devices

Description

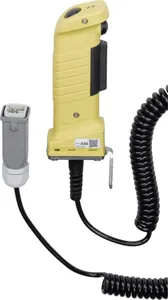

JSD-HD4-320136 3-pos.enabling device 2 add. switche, with LED, spiral cable 0,5/2,5m with 8-pol. Harting male connector (PLC, Sentry)
  • Low Voltage Products and Systems
  • Control Products
  • Safety Products
  • Safety Control Devices
  • JSHD
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2TLA920063R0000.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.5 KG / psc.
Commodity number85365080
Country of originDE
Dimensions (WxHxD)58x202x34 mm
EAN code4013614500565
Product groupG7
eclassV11.0 : 27371238
etim 7EC002571 - Agreement switch
etim 8EC002571 - Agreement switch
functionThree-position device used to allow a limited movement of the machine when the operator is in the dangerous area.
materialRubber: NBRHandle: Polyamid and Nory
b10d value2 million operations to middle position968 000 operations to bottom position
product nameSafety Control Devices
sub-function1 front and 1 top auxiliary buttons
status indicatorYes
degree of protectionIP65
number of contacts no4
performance level (pl)Up to e
ambient air temperatureOperation -10 ... +50 °C
communication interfaceContacts
connection configurationSpiral CableHarting Connector
maximum switching currentMain Circuit 20 mA
maximum switching voltageMain Circuit 30 V
rated operational voltage24 V DC
rated operational current dc-12 (ie)(24 V) 0.02 A
