ABB

2TLA920074R0000

Name: 2TLA920074R0000
Brand: ABB
Availability: PreOrder

Product type: JSD-HD4-320D06

JSD-HD4-320D06 Safety Control Devices

Description

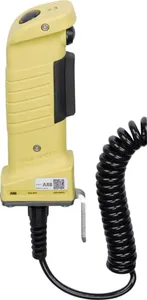

JSD-HD4-320D06 3-pos.enabling device 2 add. switche, with LED, spiral cable 1/5m, (PLC, Sentry)

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2TLA920074R0000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.88 KG / psc.
Commodity number	85365019
Country of origin	DE
Dimensions (WxHxD)	58x202x34 mm
EAN code	4013614500640
Product group	G7
eclass	V11.0 : 27371238
etim 7	EC002571 - Agreement switch
etim 8	EC002571 - Agreement switch
function	Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area.
material	Rubber: NBRHandle: Polyamid and Nory
b10d value	2 million operations to middle position968 000 operations to bottom position
product name	Safety Control Devices
sub-function	1 front and 1 top auxiliary buttons
status indicator	Yes
degree of protection	IP65
number of contacts no	4
performance level (pl)	Up to e
ambient air temperature	Operation -10 ... +50 °C
communication interface	Contacts
connection configuration	Spiral CableField side: free end
maximum switching current	Main Circuit 20 mA
maximum switching voltage	Main Circuit 30 V
rated operational voltage	24 V DC
rated operational current dc-12 (ie)	(24 V) 0.02 A
