ABB

7TCA085400R0417

Name: 7TCA085400R0417
Brand: ABB
Availability: PreOrder

Product type: OVR SL RS485L

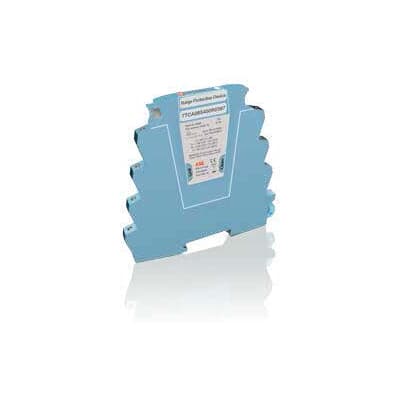

OVR SLRS485L Surge Protective Device

Description

OVR SLRS485L SLIM LINE DATA SPD WITH LED STATUS INDICATION FOR RS485 SIGNAL LINES

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 7TCA085400R0417.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.08 KG / psc.
Commodity number	8536308000
Country of origin	GB
Dimensions (WxHxD)	106.5x104.6x7 mm
EAN code	5415022384260
Product group	AK
cn8	8536308000
etim 7	EC000943 - Surge protection device for data networks/MCR-technology
standards	IEC 61643-22
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
suitable for	To protect systems against transient overvoltages or surges from lightning and electrical switching events
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
connection type	Screw Clamp
rohs information	https://library.abb.com/d/9AKK108466A5046
discharge current	I (max, 8 / 20 μs) 10 kA
reach declaration	https://library.abb.com/d/9AKK108466A5047
serial resistance	1 Ω
rated current (in)	750 mA
rated frequency (f)	45 MHz
wire stripping length	9.5 mm
ambient air temperature	Operation -40 ... +80 °C
number of protected poles	4
declaration of conformity - ce	https://library.abb.com/d/7TKK001511
voltage protection level ( up)	27.2 V
data sheet, technical information	https://library.abb.com/d/9AKK106713A8145
nominal ac voltage of the system (uo)	15 V
maximum continuous operating voltage (uc)	16.7 V
