GJH1213001R7312
Product type: K6S-31Z-2.8-72

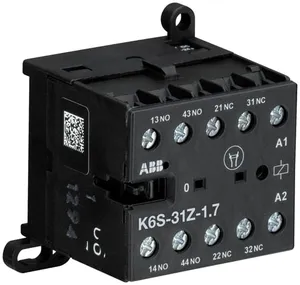

K6S-31Z-2.8-72 Mini Contactor Relay 17-32VDC, 2.8W
Description
The K6S-31Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Mini Contactor Relays
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on GJH1213001R7312.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.175 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 52.5x57.5x46.5 mm |
| EAN code | 4013614185403 |
| Product group | SA |
| cn8 | 8536 50 80 |
| eclass | V11.0 : 27371001 |
| etim 7 | EC000196 - Contactor relay |
| etim 8 | EC000196 - Contactor relay |
| unspsc | 39121500 |
| remarks | No CA6 or CAF6 mountable |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.32 W |
| rohs status | Following EU Directive 2011/65/EU |
| mounting type | DIN-RailScrew |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cb certificate | https://library.abb.com/d/1SAA938001-2001 |
| weee b2c / b2b | Business To Business |
| eac certificate | https://library.abb.com/d/1SAA938001-2701 |
| number of poles | 4 |
| coil consumption | Average Holding Value 50 Hz 2.8 V·AAverage Pull-in Value 50 Hz 2.8 V·A |
| rmrs certificate | https://library.abb.com/d/1SAA938001-0704 |
| rohs information | https://library.abb.com/d/1SAD938517-0001 |
| dimension diagram | https://library.abb.com/d/GJL1200436F0001 |
| mounting position | 1 ... 6 |
| pilot duty ul/csa | A600 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.1 N·mControl Circuit 0.8 ... 1.1 N·m |
| eplan catalog tree | Electrical engineering / Relays, contactors / Contactors |
| mini contactor type | Interface Mini Contactor Relay |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCControl Circuit DCMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC |
| degree of protection | Auxiliary Circuit Terminals IP20Control Circuit Terminals IP20Main Circuit Terminals IP20 |
| low coil consumption | Yes |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| contact rating ul/csa | A600 |
| mechanical durability | 10000000 cycle |
| wire stripping length | Auxiliary Circuit 9 mm |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| tightening torque ul/csa | Auxiliary Circuit 7 in·lbControl Circuit 7 in·lb |
| environmental information | https://library.abb.com/d/1SAC200069H0009 |
| eplan function definition | Coil / Coil, 2 connection points / Coil for power contactor A1_A2NO contact / NO contact, 2 connection points / NO auxiliary contact 43_44NO contact / NO contact, 2 connection points / NO auxiliary contact 33_34NO contact / NO contact, 2 connection points / NO auxiliary contact 13_14NC contact / NC contact, 2 connection points / NC auxiliary contact 21_22 |
| general use rating ul/csa | (600 V AC) 5 A |
| rated operational voltage | Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DC |
| minimum switching capacity | 17 V5 mA |
| number of main contacts nc | 0 |
| number of main contacts no | 0 |
| object classification code | K |
| rated insulation voltage (ui) | 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938517-0001 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 3 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1001 |
| maximum operating voltage ul/csa | 600 V AC |
| short-circuit protective devices | gG Type Fuses 6 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| rated control circuit voltage (uc) | 17 ... 32 V DC |
| rated operational current ac-15 (ie) | (24 V) 4 A(120 V) 4 A(240 V) 4 A(400 V) 3 A(500 V) 2 A |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| connecting capacity auxiliary circuit ul/csa | Stranded 1/2x 22-10 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 3g / 3 ... 150 Hz |
