Name: GJL1211903R0011
Brand: ABB
Availability: PreOrder

Product type: VB6-30-01-F-01

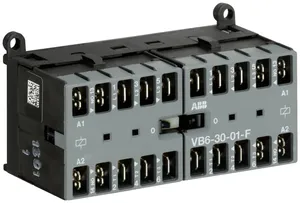

VB6-30-01-F-01 Mini Rev.Contactor 24V 40-450Hz

Datasheet

Description

The VB6-30-01-F mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, flat pin connection and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Low Voltage Products and Systems
Control Products
Contactors
Mini Contactors

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on GJL1211903R0011.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.345 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	96.2x57.5x46.7 mm
EAN code	4013614052484
Product group	SA
eclass	V11.0 : 27371009
etim 4	EC000066 - Magnet contactor, AC-switching
etim 5	EC000010 - Starter combination
etim 6	EC000010 - Combination of contactors
etim 7	EC000010 - Combination of contactors
etim 8	EC000010 - Combination of contactors
unspsc	39121529
standards	IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1
power loss	at Rated Operating Conditions per Pole 2 Wat Rated Operating Conditions AC-1 per Pole 1 W
rohs status	Following EU Directive 2011/65/EU
cb certificate	https://library.abb.com/d/1SAA938000-2002
kc certificate	https://library.abb.com/d/1SAA938000-1501
ul certificate	https://library.abb.com/d/E191658-19880915
cqc certificate	https://library.abb.com/d/CQC2003010304064033
eac certificate	https://library.abb.com/d/1SAA920000-2702
number of poles	3
pollution degree	3
rmrs certificate	https://library.abb.com/d/1SAA938000-0704
rohs information	https://library.abb.com/d/1SAD938517-0001
curus certificate	https://library.abb.com/d/cUL_E191658
dimension diagram	https://library.abb.com/d/GJL1200448F0001
dnv gl certificate	https://library.abb.com/d/1SAA938000-0306
rated frequency (f)	Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC
degree of protection	Auxiliary Circuit Terminals IP20Control Circuit Terminals IP20Main Circuit Terminals IP20
mounting on din rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
coil operating limits	(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)(acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
contact rating ul/csa	A600
mechanical durability	10000000 cycle
ambient air temperature	Operation -20 ... +55 °CStorage -40 ... +80 °C
full load amps motor use	(115 V AC) Single Phase 5.8 A(200 V AC) Three Phase 4.8 A(220 ... 240 V AC) Three Phase 6.8 A(230 V AC) Single Phase 4.9 A(440 ... 480 V AC) Three Phase 4.8 A(550 ... 600 V AC) Three Phase 1.7 A
horsepower rating ul/csa	(115 V AC) Single Phase 0.25 Hp(200 V AC) Three Phase 1 Hp(220 ... 240 V AC) Three Phase 2 Hp(230 V AC) Single Phase 0.5 Hp(440 ... 480 V AC) Three Phase 3 Hp(550 ... 600 V AC) Three Phase 1 Hp
environmental information	https://library.abb.com/d/1SAC200067H0009
general use rating ul/csa	(300 V AC) 12 A
rated operational voltage	Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DCMain Circuit 690 V ACMain Circuit 220 V DC
minimum switching capacity	Auxiliary Circuit 17 VAuxiliary Circuit 5 mA
number of main contacts nc	0
number of main contacts no	3
object classification code	Q
rated insulation voltage (ui)	690 Vacc. to UL/CSA 600 V
declaration of conformity - ce	https://library.abb.com/d/1SAD938517-0001
declaration of conformity - ccc	https://library.abb.com/d/2020980304001854
number of auxiliary contacts nc	1
number of auxiliary contacts no	0
declaration of conformity - ukca	https://library.abb.com/d/1SAD938501-1001
maximum operating voltage ul/csa	Main Circuit 600 V AC
data sheet, technical information	https://library.abb.com/d/1SBC100214C0202
rated operational power ac-3 (pe)	(230 V) Three Phase 2.2 kW(400 V) Three Phase 4 kW(500 V) Three Phase 4 kW(690 V) Three Phase, NO 3 kW
rated control circuit voltage (uc)	24 V AC
rated operational current ac-1 (ie)	(220 / 240 V) 40 °C 20 A(220 / 240 V) 55 °C 16 A(380 / 440 V) 40 °C 20 A(380 / 440 V) 55 °C 16 A(690 V) 40 °C 6 A(690 V) 55 °C 6 A
rated operational current ac-15 (ie)	(440 V AC) 3 A(24 V) 4 A(120 V) 4 A(240 V) 4 A(500 V) 2 A(380 / 400 V) 3 A
rated operational current dc-13 (ie)	(24 V) 2.5 A(110 V) 0.7 A(220 / 240 V) 0.4 A
maximum electrical switching frequency	(AC-1) 300 cycles per hour(AC-15) 600 cycles per hour(AC-3) 600 cycles per hour(DC-1) 600 cycles per hour(DC-13) 600 cycles per hour(DC-3) 600 cycles per hour
maximum operating altitude permissible	2000 m
rated impulse withstand voltage (uimp)	Main Circuit 6 kV
resistance to shock acc. to iec 60068-2-27	11 ms Pulse 15g
conventional free-air thermal current (ith)	Main Circuit 20 A
resistance to vibrations acc. to iec 60068-2-6	5g / 5 ... 150 Hz
rated short-time withstand current low voltage (icw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A
