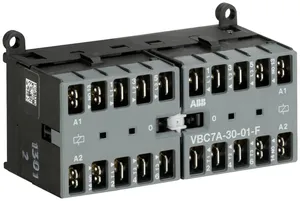

VBC7A-30-01-F-01 Mini Rev.Contactor 24VDC
Description
The VBC7A-30-01-F mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, flat pin connection and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Mini Contactors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on GJL1313913R0011.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.345 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 96.2x57.5x46.7 mm |
| EAN code | 4013614224560 |
| Product group | SA |
| eclass | V11.0 : 27371009 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000010 - Starter combination |
| etim 6 | EC000010 - Combination of contactors |
| etim 7 | EC000010 - Combination of contactors |
| etim 8 | EC000010 - Combination of contactors |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 2 Wat Rated Operating Conditions AC-1 per Pole 1.4 W |
| rohs status | Following EU Directive 2011/65/EU |
| cb certificate | https://library.abb.com/d/1SAA938000-2002 |
| kc certificate | https://library.abb.com/d/1SAA938000-1501 |
| cqc certificate | https://library.abb.com/d/CQC2003010304064033 |
| eac certificate | https://library.abb.com/d/1SAA920000-2702 |
| number of poles | 3 |
| pollution degree | 3 |
| rmrs certificate | https://library.abb.com/d/1SAA938000-0704 |
| rohs information | https://library.abb.com/d/1SAD938517-0001 |
| curus certificate | https://library.abb.com/d/cUL_E191658 |
| dimension diagram | https://library.abb.com/d/GJL1200448F0001 |
| dnv gl certificate | https://library.abb.com/d/1SAA938000-0306 |
| rated frequency (f) | Main Circuit 60 HzMain Circuit 50 HzMain Circuit DC |
| degree of protection | Main Circuit Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| coil operating limits | (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| contact rating ul/csa | A600 |
| mechanical durability | 10000000 cycle |
| ambient air temperature | Operation -20 ... +55 °CStorage -40 ... +80 °C |
| full load amps motor use | (115 V AC) Single Phase 13.8 A(200 V AC) Three Phase 7.8 A(220 ... 240 V AC) Three Phase 9.6 A(230 V AC) Single Phase 10 A(440 ... 480 V AC) Three Phase 7.6 A(550 ... 600 V AC) Three Phase 6.1 A |
| horsepower rating ul/csa | (115 V AC) Single Phase 0.75 Hp(200 V AC) Three Phase 2 Hp(220 ... 240 V AC) Three Phase 3 Hp(230 V AC) Single Phase 1.5 Hp(440 ... 480 V AC) Three Phase 5 Hp(550 ... 600 V AC) Three Phase 5 Hp |
| environmental information | https://library.abb.com/d/1SAC200068H0009 |
| general use rating ul/csa | (600 V AC) 16 A |
| rated operational voltage | Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DCMain Circuit 690 V ACMain Circuit 220 V DC |
| minimum switching capacity | Auxiliary Circuit 17 VAuxiliary Circuit 5 mA |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938517-0001 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001854 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1001 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| rated operational power ac-3 (pe) | (230 V) Three Phase 3 kW(400 V) Three Phase 5.5 kW(500 V) Three Phase 5.5 kW(690 V) Three Phase, NO 3 kW |
| rated control circuit voltage (uc) | 24 V DC |
| rated operational current ac-1 (ie) | (220 / 240 V) 40 °C 20 A(220 / 240 V) 55 °C 16 A(380 / 440 V) 40 °C 20 A(380 / 440 V) 55 °C 16 A(690 V) 40 °C 6 A(690 V) 55 °C 6 A |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-15) 600 cycles per hour(AC-3) 600 cycles per hour(DC-1) 600 cycles per hour(DC-13) 600 cycles per hour(DC-3) 600 cycles per hour |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| conventional free-air thermal current (ith) | Main Circuit 20 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 5 ... 150 Hz |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A |
