Pilz

2A000005

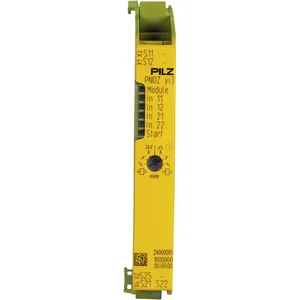

Name: 2A000005
Brand: Pilz
Availability: PreOrder

Product type: PNOZ yi3 2DI T3A

Datasheet

Description

Expansion module of the modular safety relay myPNOZ, inputs: 4 for monitoring of 2-hand monitoring Type IIIA to EN 574 and another safety function (1/2-channel wiring with/without detection of shorts across contacts) AND-linked, width: 12.5mm

Relay modules
Modular safety relays
myPNOZ - safety relays
I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2A000005.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.074 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x98x121 mm
EAN code
Product group	7126
approval	CE CCC UKCA cULus Listed TÜV EAC (Eurasian)
gross weight	86 g
terminal style	plug-in
purpose of uint1	Module supply
mounting position	any
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
type of two-hand device	III A
flex. cond. c/s awg info	24 - 12 AWG
number of digital inputs	4
protection type standard	EN 60529
potential isolation input	No
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
simultaneity input circuit	∞
source of internal voltage	Via head module
type of two-hand device to	EN 574
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 60947-5-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
