Pilz

2A000010

Name: 2A000010
Brand: Pilz
Availability: PreOrder

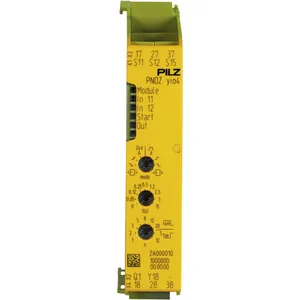

Product type: PNOZ yio4 2DI 3NO t

Datasheet

Description

Expansion module of the modular safety relay myPNOZ, outputs: 3 n/o safe delay-on de-energisation switching relay contacts (t=0-300s), 1 signal output in semiconductor technology, inputs: 2 for monitoring 1 safety function: 1/2-channel wiring with/without detection of shorts across contacts, width: 17.5mm

Relay modules
Modular safety relays
myPNOZ - safety relays
I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2A000010.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.115 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	17.5x98x121 mm
EAN code
Product group	7126
approval	CE CCC UKCA cULus Listed TÜV EAC (Eurasian)
gross weight	127 g
tolerance tv	+/-1.5 %
terminal style	plug-in
permitted loads	Resistive Inductive
purpose of uint1	Module supply
mounting position	any
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
overvoltage category	III
pilot duty r300 to ul	24 V DC
voltage type of uint1	DC
relay contact material	AgCuNi
acc. shock to standard1	15g
condensation permitted?	Not permitted
flex. cond. c/s awg info	24 - 12 AWG
number of digital inputs	2
protection type standard	EN 60529
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
potential isolation input	No
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
simultaneity input circuit	∞
source of internal voltage	Via head module
housing material upper part	PC
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0.2 µm Au
ambient temperature standard	EN 60068-2-14
pot. isolation relay outputs	Yes
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 60947-5-1
climatic suitability standard	EN 60068-2-78
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
potential isolation 1 between	Output and system voltage
type of potential isolation 1	Safe separation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	5 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
