Pilz

2A000012

Name: 2A000012
Brand: Pilz
Availability: PreOrder

Product type: PNOZ yo1 2SO

Datasheet

Description

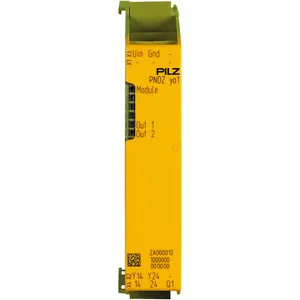

Expansion module of the modular safety relay myPNOZ, outputs: 2 safe instantaneous switching semiconductor outputs, 1 signal output in semiconductor technology, width: 17.5mm

Relay modules
Modular safety relays
myPNOZ - safety relays
I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2A000012.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.085 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	17.5x98x121 mm
EAN code
Product group	7126
approval	CE CCC UKCA cULus Listed TÜV EAC (Eurasian)
gross weight	97 g
purpose of u2	Supply of SC outputs
terminal style	plug-in
permitted loads	Resistive Inductive Capacitive
purpose of uint1	Module supply
mounting position	any
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
overvoltage category	III
supply voltage 2 (v)	12 V
voltage type of uint1	DC
potential isolation u2	No
acc. shock to standard1	15g
condensation permitted?	Not permitted
perm. load 1pole output	ohmsch induktiv kapazitiv
flex. cond. c/s awg info	24 - 12 AWG
protection type standard	EN 60529
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
source of internal voltage	Via head module
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
potential isolation of s/c o	No
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60947-5-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
