Pilz

312042

Name: 312042
Brand: Pilz
Availability: PreOrder

Product type: PSSu H F PN o

Datasheet

Description

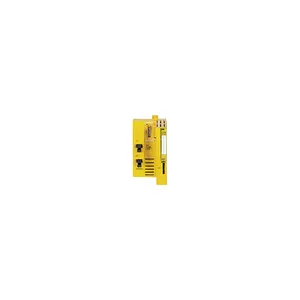

PSSu, head module, control system PSSu I/O, failsafe, 2 optical female connector SC-RJ 100Base-FX POF-LWL, PROFINET IO DEVICE,PROFIsafe, PROFIenergy, IRT/RT, MRP, shared device, iPAS server.

Controller
I/O systems
PSSuniversal - communications modules
PSSuniversal - combined head modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312042.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.197 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	75.2x128.4x79.4 mm
EAN code
Product group	7023
approval	CE cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	234
profinet type	Slave
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
ambient temperature	0 60
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
profinet certification	PNO
acc. shock to standard1	15g
acc. shock to standard2	25g
condensation permitted?	Not permitted
eclass reference feature	27242608
profinet manufacturer id	092Fh
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
connector type profinet i/f	SC-RJ
housing material front plate	PC
settable trans.rate profinet	100 MBit/s
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
