Pilz

312071

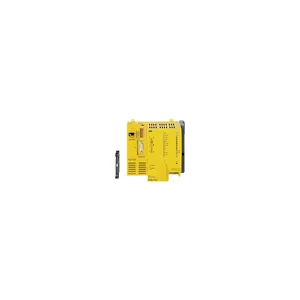

Name: 312071
Brand: Pilz
Availability: PreOrder

Product type: PSSu H PLC1 FS DP SN SD

Datasheet

Description

PSSu, head module, control system PSSu PLC, failsafe and standard, PL e, SIL CL 3, 1 D-Sub female connector 9-pin, PROFIBUS-DP Slave, transmission rates 9.6 kBit/s - 12 MBit/s, 1 RJ45 Port, SafetyNET pRTFN, Modbus/TCP, Raw UDP, Raw TCP, SD card.

Controller
PLC controllers
PSSuniversal - controllers
PSSuniversal - PLC Controller

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312071.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.375 KG / psc.
Commodity number	85371091
Country of origin	DE
Dimensions (WxHxD)	130x125.6x83.7 mm
EAN code
Product group	7014
ram	128 MB
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	415
profibus type	Slave
purpose of u1	Module supply
purpose of u2	Periphery supply
type of uint1	DC
eclass version	ECLASS-9.1
plug-in memory	SD card
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
time deviation	+/- 10s/day
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
tolerance of u2	-30 %/+25 %
purpose of uint1	int. system voltage
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
modbus cycle time	2 ... 2 000 000 ms
multi programming	Yes
user memory total	4 MB
raw udp cycle time	2 ... 2 000 000 ms
supply voltage (v)	24 24
tolerance of uint1	-2 %/+3 %
ambient temperature	0 60
connection terminal	Screw terminal Spring-loaded terminal
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
profibus cycle time	2 ... 300 000 ms
etim reference group	EG000024
overvoltage category	II
power consumption dc	16.1
supply voltage 2 (v)	24 24
iec 61131 programming	Yes
name profibus protocol	DPV0
non-volatile variables	Yes
safetynet p cycle time	2 ... 60 000 ms
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
profibus manufacturer id	0CB0h
profibus operating modes	Freeze Mode Set Slave Address Sync Mode AutoBaud
nv user memory fs section	382 kB
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
type of supply voltage u2	DC
uint1 short circuit proof	Yes
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
pot. isolation uint1 to u2	3050 V
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
safetynet transmission rate	10 MBit/s 100 MBit/s
connector type safetynet i/f	RJ45
name description file profib	Pilz0CB0.gsd
potential isolation u1 to u2	3050 V
settable trans.rate profibus	185.5 kBit/s 6 MBit/s 500 kBit/s 93.75 kBit/s 19.2 kBit/s 12 MBit/s 1.5 MBit/s 9.6 kBit/s 3 MBit/s 45.45 kBit/s
setting safetynet trans.rate	Automatic
trans. rate setting profibus	Automatic
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	6c 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
bridge u-interrupt uint1 stan.	EN 61131-2 EN 61496-1
connector type profibus inter.	9-pin D-Sub female connector
housing material lower section	PC
max. curr. contin. oper. uint1	2
perm. profib. statn. addresses	0 ... 126d
pollution degree clear.&creep.	2
setting profibus station addr.	DIP switch
