Pilz

312200

Name: 312200
Brand: Pilz
Availability: PreOrder

Product type: PSSu E F 4DI

Datasheet

Description

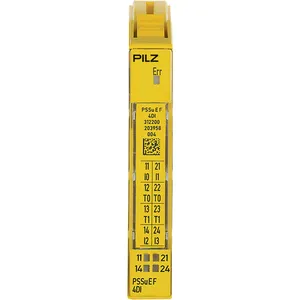

PSSu, electronic module, failsafe, digital inputs and outputs, 4 inputs, 2 test pulse outputs 0.25 A.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312200.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	44
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
application range	Fail-safe
ambient temperature	0
dc voltage at input	24 V DC
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
housing material code	PA
name of coding element	D
acc. shock to standard1	15g
acc. shock to standard2	10g
condensation permitted?	unzulässig
colour of coding element	gelb
eclass reference feature	27242604
number of digital inputs	4
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
protection type, mounting	IP54
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
potential isolation inputs	ja
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
number of test pulse outputs	2
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
