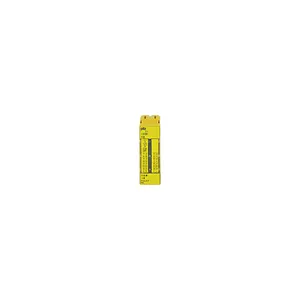

Pilz

312280

Name: 312280
Brand: Pilz
Availability: PreOrder

Product type: PSSu E F INC

Datasheet

Description

PSSu, electronic module, failsafe, counter, 2 operating modes, configurable, 1 input, incremental encoder, differential signal RS422, resolution 32 Bit.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312280.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.049 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	58
eclass version	ECLASS-9.1
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
ambient temperature	0
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
housing material code	PA
name of coding element	J
acc. shock to standard1	15g
acc. shock to standard2	10g
condensation permitted?	unzulässig
colour of coding element	gelb
eclass reference feature	27242604
protection type standard	EN 60529
protection type, housing	IP20
terminal protection type	IP20
protection type, mounting	IP54
type of inputs incr. enc.	Inkrementalgeber
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal input a, b and/or c	Differenzsignal (RS-422)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isol. incr./mod.supply	ja
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot. isol. incr./per. supply	ja
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
evaluation counter puls incr.	1-fach
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
