Pilz

312430

Name: 312430
Brand: Pilz
Availability: PreOrder

Product type: PSSu K S 16DI

Datasheet

Description

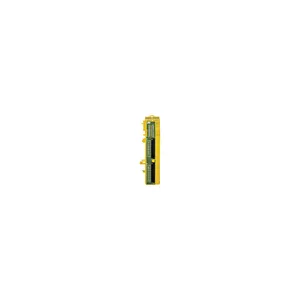

PSSu, compact module, standard, digital inputs and outputs, 16 inputs.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312430.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.087 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	30x128.9x56 mm
EAN code
Product group	7017
cas no.	1317-36-8
approval	CE BG cULus Listed TÜV
etim version	ETIM-7.0
gross weight	100
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 55011: Class A EN 61000-4-8 EN 61000-4-11 EN 61000-4-9 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242604
number of digital inputs	16 16
protection type standard	EN 60529
reach included substances	Lead oxide
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
potential isolation inputs	yes
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 61131-2 EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
housing material label holder	PC
rohs except.s acc. to direct.	7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
