Pilz

312431

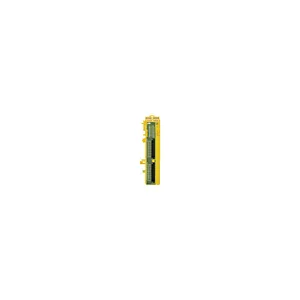

Name: 312431
Brand: Pilz
Availability: PreOrder

Product type: PSSu K S 8DI 8DO 0.5

Datasheet

Description

PSSu, electronic module, standard, digital inputs and outputs, 8 inputs,8 outputs, single-pole, positive-switching, short-circuit proof, overload-proof.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312431.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.089 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	30x128.9x56 mm
EAN code
Product group	7017
approval	CE BG cULus Listed TÜV
etim version	ETIM-7.0
gross weight	105
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
tolerance of u3	-30 %/+25 %
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61000-4-8 EN 55011: Class A EN 61000-4-9 EN 61000-4-11 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	II
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242604
number of digital inputs	8 8
potent. isol. s/c o to i	Yes
protection type standard	EN 60529
type of supply voltage u3	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
potential isolation inputs	yes
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
max. device circuit breaker	10 A
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
housing material label holder	PC
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
potential isolation u2 outputs	Yes
s/c output short circuit proof	Yes
