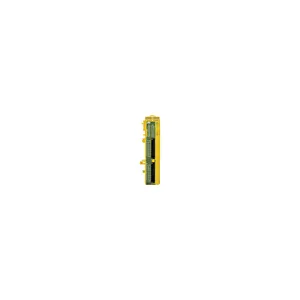

Pilz

312432

Name: 312432
Brand: Pilz
Availability: PreOrder

Product type: PSSu K S 16DO 0.5

Datasheet

Description

PSSu, compact module, Standard, digital inputs and outputs, 16 outputs, 0.5 A, single-pole, positive-switching, short-circuit proof,overload-proof.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312432.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.092 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	30x128.9x56 mm
EAN code
Product group	7017
approval	CE BG cULus Listed TÜV
etim version	ETIM-7.0
gross weight	105
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
rohs conformity	yes
rohs exceptions	no
tolerance of u3	-30 %/+25 %
reach compliance	Contains no SVHC substances
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61000-4-8 EN 55011: Class A EN 61000-4-9 EN 61000-4-11 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	II
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242604
protection type standard	EN 60529
potential isolation s/c o	Yes
type of supply voltage u3	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2 EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
housing material label holder	PC
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
