Pilz

312435

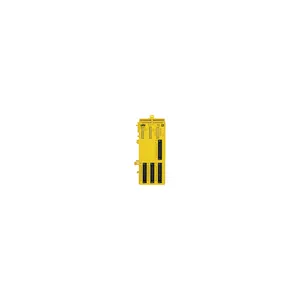

Name: 312435
Brand: Pilz
Availability: PreOrder

Product type: PSSu K F FCU

Datasheet

Description

PSSu, compact module, failsafe, digital inputs and outputs, 2 operating modes, configurable, pulse stretching, rapid shutdown, 12 inputs, 2 test pulse outputs 0.25 A, 2 outputs, 2 A, single-pole, positive-switching, short-circuit proof, overload-protected, free fromfeedback, 2 outputs, 3 A, dual-pole, positive-switching, short-circuit proof, overload-protected, free from feedback.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312435.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.17 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	56x128.9x56 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	185
purpose of u1	Module Supply
purpose of u2	Periphery Supply
purpose of u3	Ausgänge
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
tolerance of u2	-30 %/+25 %
tolerance of u3	-30 %/+25 %
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
supply voltage (v)	5
ambient temperature	0
connection terminal	Stiftleiste
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
power consumption dc	1.3
supply voltage 2 (v)	24
acc. shock to standard1	15g
condensation permitted?	unzulässig
number 2-pin sc outputs	2
perm. load 1pole output	ohmsch induktiv kapazitiv
eclass reference feature	27242604
number of digital inputs	12
potent. isol. s/c o to i	ja
protection type standard	EN 60529
protection type, housing	IP20
potential isolation s/c o	ja
protection type, mounting	IP54
type of supply voltage u1	DC
type of supply voltage u2	DC
type of supply voltage u3	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
pot. isolation 2pole s/c o	ja
potential isolation inputs	ja
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
number of test pulse outputs	2
storage temperature standard	EN 60068-2-1/-2
2pole s/c o short circ. proof	ja
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
housing material label holder	PC
max. processing pulse i/p 1-0	400 ... 5300 µs
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. processing fast input 0-1	100 ... 5800 µs
max. processing fast input 1-0	200 ... 5800 µs
max. processing pulse i/p 0- 1	400 ... 5300 µs
pollution degree clear.&creep.	2
s/c output short circuit proof	ja
