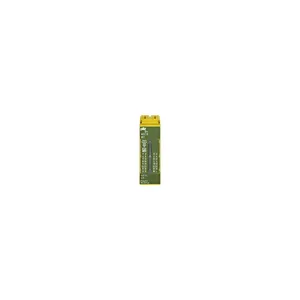

Pilz

312486

Name: 312486
Brand: Pilz
Availability: PreOrder

Product type: PSSu E S INC 24V se

Datasheet

Description

PSSu, electronic module, standard, counter, 2 operating modes, configurable, 1 input, incremental encoder, differential signal RS422, resolution 32 Bit, 1 output encoder supply 24 V DC 100 mA, 1 output, 0.5 A.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312486.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.045 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE cULus Listed TÜV
etim version	ETIM-7.0
gross weight	54
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	II
housing material code	PA
dc voltage at output 2	24 V DC
name of coding element	M
acc. shock to standard1	15g
condensation permitted?	Not permitted
colour of coding element	Dark grey
eclass reference feature	27242610
protection type standard	EN 60529
type of inputs incr. enc.	Incremental encoder
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal input a, b and/or c	Single-ended (HTL)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isol. incr./mod.supply	Yes
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot. isol. incr./per. supply	No
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
evaluation counter puls incr.	2x 1x 4x
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
