Pilz

312490

Name: 312490
Brand: Pilz
Availability: PreOrder

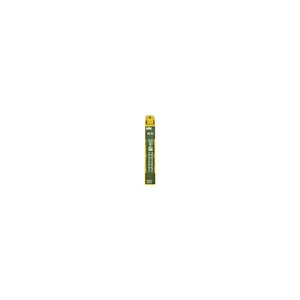

Product type: PSSu E S 2AI RTD

Datasheet

Description

PSSu, electronic module, standard, analogue inputs and outputs, 2inputs, resistance thermometer, Ni100, Ni120, Ni1000, Pt100, Pt200, Pt500, Pt1000, resistance 0 - 4000 Ohm.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 312490.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	12.6x76x60.2 mm
EAN code
Product group	7017
approval	CE cULus Listed TÜV
etim version	ETIM-7.0
gross weight	44
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
type of input filter	Digital filter
housing material code	PA
name of coding element	G
acc. shock to standard1	15g
condensation permitted?	Not permitted
type of analogue inputs	Resistance thermometer
colour of coding element	Dark grey
eclass reference feature	27242601
protection type standard	EN 60529
damping of input filter 1	90 dB (60 Hz)
number of analogue inputs	2
platinum sensors standard	DIN EN 60751
signal range analog input	Pt100 Pt200 Resistance Ni1000 Pt500 Ni100 Pt1000 Ni120
vibration to standard ...	EN 60068-2-6
analog input signal type 1	Pt100
analog input signal type 2	Pt200
analog input signal type 3	Pt500
analog input signal type 4	Pt1000
analog input signal type 5	Ni100
analog input signal type 6	Ni120
analog input signal type 7	Ni1000
analog input signal type 8	Resistance
perm. operating height asl	2000 m
potential isolation inputs	yes
analog input signal range 1	-200 - 850 °C
analog input signal range 2	-200 - 850 °C
analog input signal range 3	-200 - 850 °C
analog input signal range 4	-200 - 850 °C
analog input signal range 5	-60 - 250 °C
analog input signal range 6	-60 - 250 °C
analog input signal range 7	-60 - 250 °C
analog input signal range 8	0 - 4000 Ohm
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isolation analog inp./	Yes
ambient temperature standard	EN 60068-2-14
conversion method analog i/p	Delta sigma
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
