Pilz

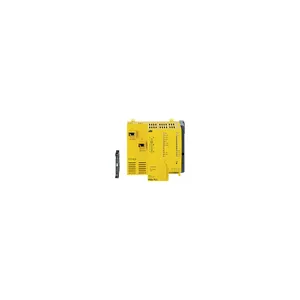

314070

Name: 314070
Brand: Pilz
Availability: PreOrder

Product type: PSSu H PLC1 FS SN SD-T

Datasheet

Description

PSSu, head module, control system PSSu PLC, failsafe and standard, PL e, SIL CL 3, 2 RJ45 ports, SafetyNET p RTFN, Modbus/TCP, Raw UDP, Raw TCP, EtherNet/IP adapter, PROFINET IO DEVICE, SD card, for increased environmental requirements.

Controller
PLC controllers
PSSuniversal - controllers
PSSuniversal - PLC Controller

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 314070.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.378 KG / psc.
Commodity number	85371091
Country of origin	DE
Dimensions (WxHxD)	130x125.6x83.7 mm
EAN code
Product group	7014
ram	128 MB
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	413
profinet type	Slave
purpose of u1	Module supply
purpose of u2	Periphery supply
type of uint1	DC
eclass version	ECLASS-9.1
plug-in memory	SD card
terminal style	plug-in
time deviation	+/- 10s/day
humidity rating	93 % r. h. at 40 °C
tolerance of u2	-30 %/+25 %
purpose of uint1	int. system voltage
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
modbus cycle time	2 ... 2 000 000 ms
multi programming	Yes
user memory total	4 MB
raw udp cycle time	2 ... 2 000 000 ms
supply voltage (v)	24 24
tolerance of uint1	-2 %/+3 %
ambient temperature	-40 70
broad band noise to	EN 60068-2-64
connection terminal	Spring-loaded terminal Screw terminal
emc to standard ...	EN 61131-2 (Zone B)
eds file ethernet/ip	00B5000C00010100.eds
etim reference group	EG000024
overvoltage category	II
power consumption dc	16
supply voltage 2 (v)	24 24
iec 61131 programming	Yes
cycle time ethernet/ip	4...655 000 ms
non-volatile variables	Yes
profinet certification	PNO
safetynet p cycle time	2 ... 60 000 ms
acc. shock to standard1	15g
condensation permitted?	Briefly
device type ethernet/ip	Adapter
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
profinet manufacturer id	092Fh
nv user memory fs section	382 kB
supported ethernet/ip rpi	4...655 000 ms
type of supply voltage u1	DC
type of supply voltage u2	DC
uint1 short circuit proof	Yes
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
connector type profinet i/f	RJ45
safetynet transmission rate	100 MBit/s
connector type safetynet i/f	RJ45
settable trans.rate profinet	100 MBit/s
setting safetynet trans.rate	Automatic
trans. rate setting profinet	Automatic
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-78
cycle time profinet io device	4 ... 512 ms
potential isolation 1 between	Periphery and module supply
potential isolation 2 between	Periphery supply & system V.
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
bridge u-interrupt uint1 stan.	EN 61131-2 EN 61496-1
housing material lower section	PC
max. curr. contin. oper. uint1	2
pollution degree clear.&creep.	2
