Pilz

314434

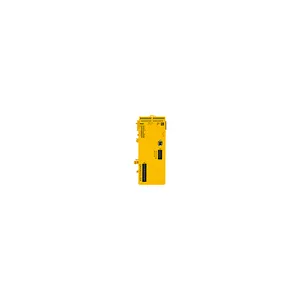

Name: 314434
Brand: Pilz
Availability: PreOrder

Product type: PSSu K F EI CV-T

Datasheet

Description

PSSu, compact module, failsafe, counter, safe motion monitoring, recording position counter value, 2 outputs, failsafe, 0.5 A,single-pole, positive-switching, short circuit-proof overload-proof, free fromfeedback, 1 output, standard, 0.5 A, single-pole, positive-switching, shortcircuit-proof, 1 combined input and output CIO for cascading, standard, 1 input for encoder, Mini-IO female connector, 8-pin, 2 inputs for proximity switch, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 314434.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	56x128.9x56 mm
EAN code
Product group	7017
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	165
purpose of u1	Module Supply
purpose of u2	Periphery Supply
purpose of u3	Ausgänge
eclass version	ECLASS-9.1
terminal style	steckbar
humidity rating	93 % r. F. bei 40 °C
tolerance of u2	-30 %/+25 %
tolerance of u3	-30 %/+25 %
reach compliance	contains min. 1 SVHC-substance
application range	Fail-safe
supply voltage (v)	5
ambient temperature	-40
connection terminal	Stiftleiste
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
power consumption dc	1.1
supply voltage 2 (v)	24
acc. shock to standard1	15g
condensation permitted?	ISO 16750-4
perm. load 1pole output	ohmsch induktiv kapazitiv
eclass reference feature	27242604
potent. isol. s/c o to i	ja
protection type standard	EN 60529
protection type, housing	IP20
potential isolation s/c o	ja
protection type, mounting	IP54
type of supply voltage u1	DC
type of supply voltage u2	DC
type of supply voltage u3	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
evaluation counter puls incr.	1-fach 4-fach
number of incremental encoder	1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connection (increment encoder)	Mini-IO-Buchsenstecker, 8polig
housing material lower section	PC
phase pos. diff.sign. inc.enc.	90° ±30°
pollution degree clear.&creep.	2
prog. mon. fun. wo hyst. incr.	0,1 Hz - 500 kHz
prog. mon.fun. wo hyst prox sw	0,1 Hz - 5 kHz
reaction time over limit value	1/f_ist + 10ms
s/c output short circuit proof	ja
