Pilz

314486

Name: 314486
Brand: Pilz
Availability: PreOrder

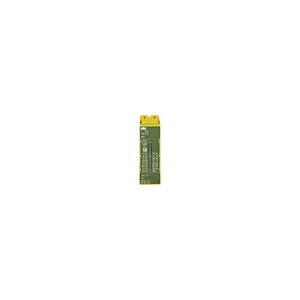

Product type: PSSu E S INC 24V se -T

Datasheet

Description

PSSu, electronic module, standard, counter, 2 operating modes, configurable, 1 input, incremental encoder, differential signal RS422, resolution 32 Bit, 1 output encoder supply 24 V DC 100 mA, 1 output, 0.5 A, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 314486.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.048 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE TÜV
etim version	ETIM-7.0
gross weight	57
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	-40 70
broad band noise to	EN 60068-2-64
emc to standard ...	EN 61000-6-2 EN 61000-4-4 EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	II
housing material code	PA
dc voltage at output 2	24 V DC
name of coding element	M
acc. shock to standard1	15g
acc. shock to standard2	25g
condensation permitted?	Briefly
colour of coding element	Dark grey
eclass reference feature	27242610
protection type standard	EN 60529
type of inputs incr. enc.	Incremental encoder
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
signal input a, b and/or c	Single-ended (HTL)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isol. incr./mod.supply	Yes
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot. isol. incr./per. supply	No
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
evaluation counter puls incr.	2x 1x 4x
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
