Pilz

314510

Name: 314510
Brand: Pilz
Availability: PreOrder

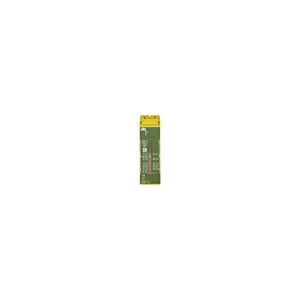

Product type: PSSu E S 2DOR 10-T

Datasheet

Description

PSSu, electronic module, standard, digital inputs and outputs, 2outputs, relay contacts, 10 A, N/O, potential-free, for increased environmental requirements.

Controller
I/O systems
PSSuniversal - I/O modules
PSSuniversal - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 314510.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.064 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	25.2x76x60.2 mm
EAN code
Product group	7017
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	79
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive
reach compliance	contains min. 1 SVHC-substance
application range	Standard
ambient temperature	-40 70
emc to standard ...	EN 61131-2 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
etim reference group	EG000024
overvoltage category	II
ambient temp. with ul	60 °C
housing material code	PA
name of coding element	I
pot.isol. rlcont to u2	4900 V (safe separation)
relay contact material	AgCuNi
acc. shock to standard1	15g
condensation permitted?	Briefly
number of relay outputs	2
colour of coding element	Dark grey
eclass reference feature	27242604
pot.isol. rlcont - uint1	4900 V (safe separation)
protection type standard	EN 60529
safety contacts: ac at ul	240 VAC G. P.
vibration to standard ...	EN 60068-2-6
perm. operating height asl	5000 m
pot.isol. rlcont1 to crail	3050 V (basic insulation)
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
contact relay fuse prot. to	EN 60947-5-1
safety contacts: pilot duty	3.0 A
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot.isol. rlcont1 to rlcont2	4900 V (safe separation)
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1 EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
