Pilz

316010

Name: 316010
Brand: Pilz
Availability: PreOrder

Product type: PSS67 IO1 16FDI

Datasheet

Description

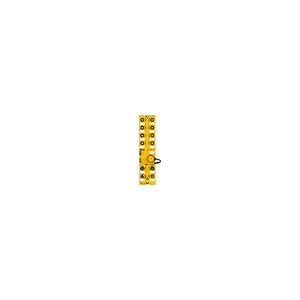

PSS 4000 I/O, I/O module with protection type IP67, 16 safe digital inputs, connection SafetyNET p.

Controller
I/O systems
PSS67 modules
PSS67 modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 316010.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.94 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	61.5x260x52 mm
EAN code
Product group	7130
ram	128 MB
approval	CE cULus Listed TÜV
etim version	ETIM-7.0
gross weight	1230
purpose of u1	Device supply
purpose of u2	Load supply
eclass version	ECLASS-9.1
plug-in memory	µSD card
terminal style	screw interlocked
time deviation	+/- 10s/day
reach compliance	contains min. 1 SVHC-substance
application range	Failsafe
multi programming	No
supply voltage (v)	24 24
ambient temperature	-30 70
connection terminal	M12
dc voltage at input	24 V DC
emc to standard ...	EN 61131-2 (Zone B)
overvoltage category	II
power consumption dc	4.9
supply voltage 2 (v)	24 24
iec 61131 programming	No
non-volatile variables	No
safetynet p cycle time	2 ... 60 000 ms
acc. shock to standard1	150 m/s²
condensation permitted?	Permitted
eclass reference feature	27242290
number of digital inputs	16 16
protection type standard	EN 60529
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
potential isolation inputs	No
climatic suitability to ...	EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
safetynet transmission rate	100 MBit/s
ambient temperature standard	EN 60068-2-14
connector type safetynet i/f	M12
number of test pulse outputs	16
setting safetynet trans.rate	Automatic
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
potential isolation 1 between	Load supply and device supply
potential isolation 2 between	SafetyNET p and device supply
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
