Pilz

328062

Name: 328062
Brand: Pilz
Availability: PreOrder

Product type: PSS u2 P0 F/S PN2

Datasheet

Description

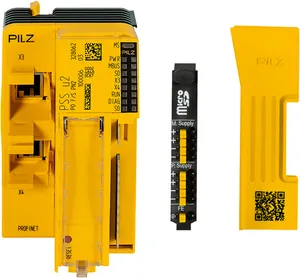

Head module for PSS u2 in remote I/O system, failsafe and standard, 2 RJ45 female connectors, PROFINET with PROFIsafe profile, Conformance Class C (CC-C), IRT/RT, Shared Device, integrated supply voltage forconnecting module supply and periphery supply, potential isolation, connection for functional earth, slot for microSD card

Controller
I/O systems
PSSuniversal 2 - Communication modules
PSSuniversal 2 - safe communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 328062.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	64.1x110.1x94.7 mm
EAN code
Product group	7102
approval	CE cULus Listed TÜV
gross weight	260
profinet type	IO device
purpose of u1	Module supply
purpose of u2	Periphery supply
plug-in memory	µSD card
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
tolerance of u2	-30 %/+25 %
application range	Standard/failsafe
supply voltage (v)	24 24
ambient temperature	0 60
connection terminal	Spring-loaded terminal
emc to standard ...	EN 61131-2 (Zone B)
overvoltage category	II
power consumption dc	28.8
supply voltage 2 (v)	24 24
potential isolation u1	Yes
potential isolation u2	Yes
profinet certification	PNO
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
cycle time profinet (rt)	1 ... 512 ms
profinet manufacturer id	092Fh
cycle time profinet (irt)	1 ... 16 ms
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
connector type profinet i/f	RJ45
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
settable trans.rate profinet	100 MBit/s
storage temperature standard	EN 60068-2-1/-2
trans. rate setting profinet	Automatic
clearance & creepage dist. to	EN 61131-2 UL/IEC 61010-2-201
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	UB and periphery supply
potential isolation 2 between	UB and module supply
potential isolation 3 between	Periphery and module supply
potential isolation 4 between	Module supply and PROFINET
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Functional insulation
type of potential isolation 4	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPE
pollution degree clear.&creep.	2
