Pilz

328071

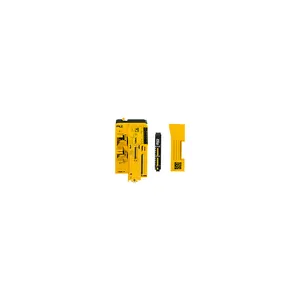

Name: 328071
Brand: Pilz
Availability: PreOrder

Product type: PSS u2 P0 F/S EIP

Datasheet

Description

Head module for PSS u2 in remote I/O system, failsafe and standard, 2 RJ45 female connectors, EtherNet/IP interface with CIP Safety protocol, integrated supply voltage for connecting module supply and periphery supply, potential isolation, connection for functional earth, slot for microSD card

Controller
I/O systems
PSSuniversal 2 - Communication modules
PSSuniversal 2 - safe communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 328071.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	64.1x110.1x94.7 mm
EAN code
Product group	7102
approval	CE cULus Listed TÜV
etim version	ETIM-7.0
gross weight	250
purpose of u1	Module supply
purpose of u2	Periphery supply
eclass version	ECLASS-9.1
plug-in memory	µSD card
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
tolerance of u2	-30 %/+25 %
housing material	PC PPE
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
supply voltage (v)	24 24
ambient temperature	0 60
connection terminal	Spring-loaded terminal
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
power consumption dc	28.8
supply voltage 2 (v)	24 24
potential isolation u1	Yes
potential isolation u2	Yes
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
device type ethernet/ip	Adapter
supported cipsafety rpi	6 ... 3200 ms
trans. rate ethernet/ip	100 MBit/s
eclass reference feature	27242608
ethernet/ip certification	ODVA
supported ethernet/ip rpi	1 ... 3200 ms
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2 UL/IEC 61010-2-201
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	UB and periphery supply
potential isolation 2 between	UB and module supply
potential isolation 3 between	Periphery and module supply
potential isolation 4 between	Module supply and EtherNet/IP
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Functional insulation
type of potential isolation 4	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPE
pollution degree clear.&creep.	2
